How much depends on the terminal and size of the wire typically 316 14 inch. If the terminal is insulated be sure to slide the silicone plug over the wire before the crimp terminal.
Assembly Instructions For Weather Pack Connector Terminals
How to crimp weatherpack connectors. This tool is as far as we can tell. Diy solar power with will prowse 210201 views. Mpp solar power invertermpptcharger all in one complete review duration. The eastwood crimp right weather pack connector crimping kit brings a valuable previously professional only weather tight connector installation capability to the serious automotive diyer. 3 inspect for proper crimps on wire and insulation. It should fit kind of snug on the wire so.

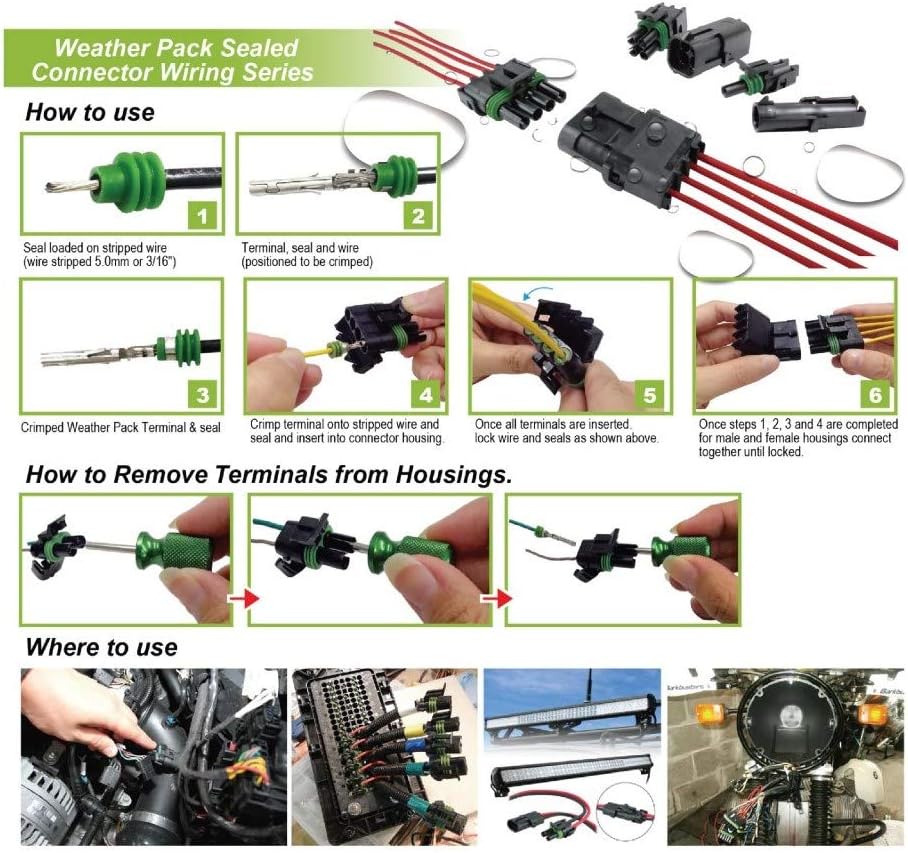

Start the crimp by stripping a small length of wire. Strip the wire about 316. Hold weather pack pin in position in correct gauge slot with crimp tool 2 insert stripped wire into the pin and hold in place while full crimping terminal. Place the wire inside the crimping lugs on the terminal. 5 insert crimped terminal into weatherpack connector until pin locks in. 4 slide seal forward on wire covering the insulation crimp.

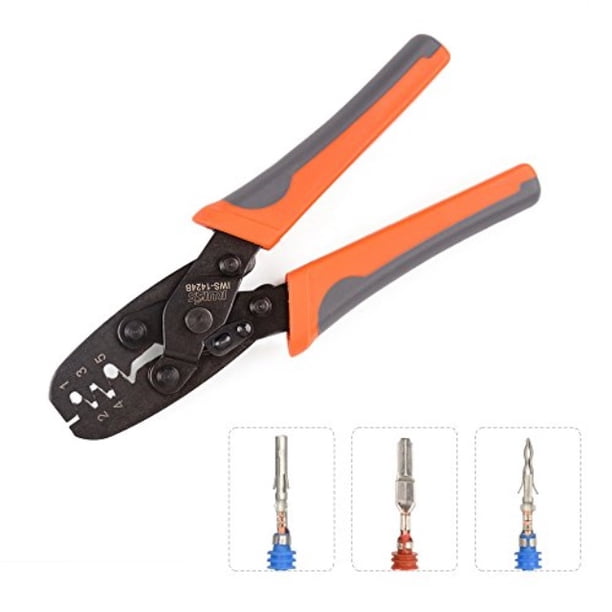

A high quality weather pack crimping tool is very important for a good crimp. Select the correctly sized seal and slip this over the wires insulation.
