Relays are generally designed to handle 30 40 amps of current. 10 begingroup the noise the relays in a car actually used to be an unintentional usability feature.
Understanding Automotive Relays Installing Engine Relay
How many relays in a car. However common locations for their installation are in the engine compartment behind the kick panels and underneath the dash. The typical blinker sound. In such cases a relay is needed. The relay is an electromagnetically operated switch where with a low level input current typically in the range of 100 ma and 150 ma can be switched high level current up to 80 a in some cases. You will notice that on the type b layout pins 86 and 30 are swapped over compared with the type a layout. Some heavy duty relays for fans headlamps etc.
20 30 and 40 amp relays are common in automotive use. A typical car can contain up to twenty automotive relays and they can be located throughout the vehicle. Look for relay diagrams or a relay schematic that is printed on the side of the relay to determine its function. A relay is therefore basically like a big electrically operated switch to handle large loads. Wiring with a relay allows the power to run straight from the battery through the relay mounted nearby directly to the lights. Theres plenty of room for as many relays as a car needs under the hood and the little noises they make are completely masked by the sound of the car itself.
Endgroup darrel hoffman may 4 16 at 2008. These layouts are shown on the two 5 pin relays below pin 87a not present on 4 pin relays. But legacy auto makers have a long history with relays have bought them by the millions for decades and use the s. The automotive iso mini relays we have been looking at above are typically available in two types of pin layout designated type a and type b layouts. Solid state switches that are rugged low resistance and really cheap are what any modern design should use. Many would tap into power at the fuse block run it to a dash mounted switch then back through the firewall all the way forward to the lights.

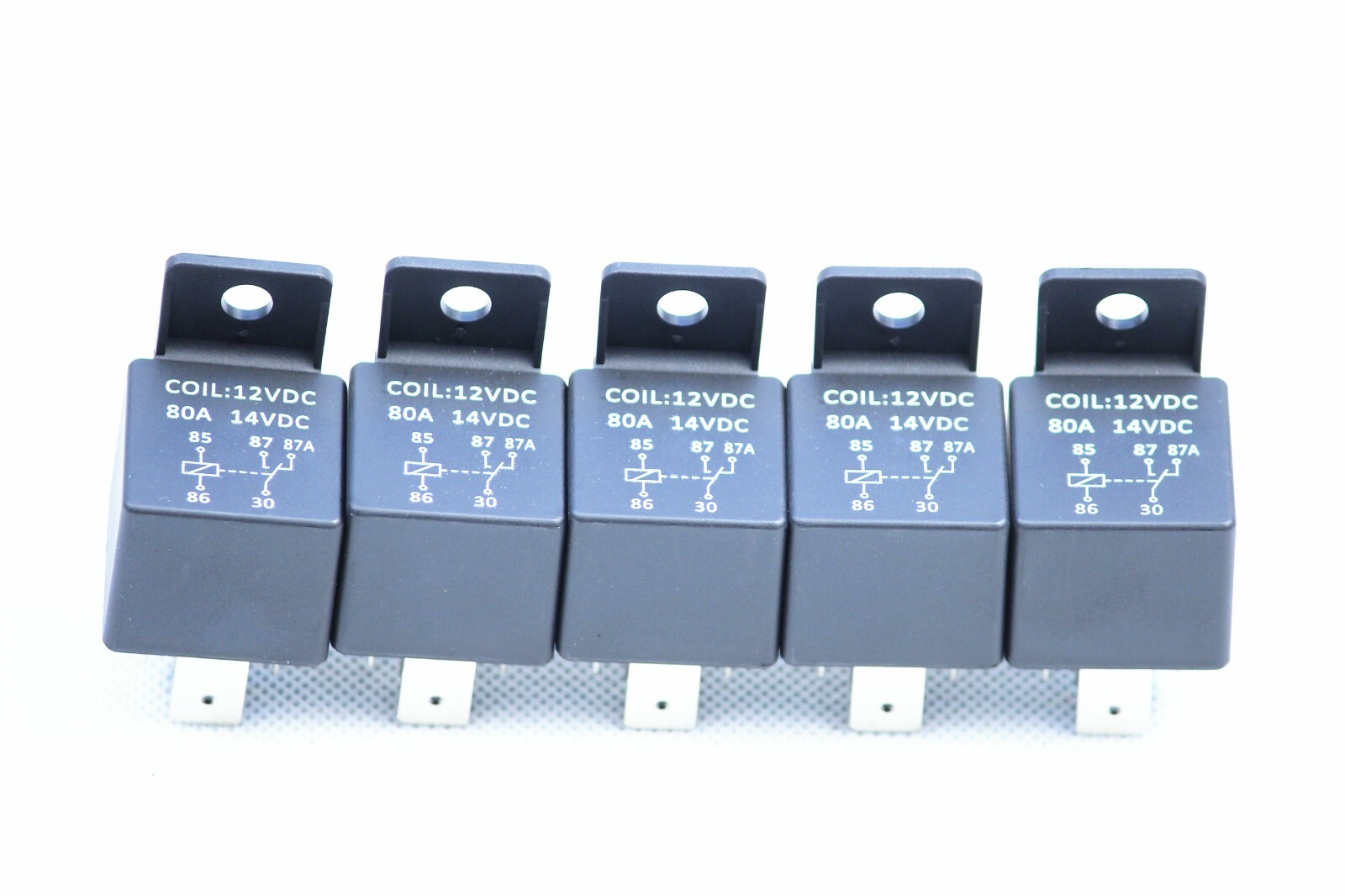

Also handle 70 80 amps of current. Below are some examples of basic 12 volt dc car relays. How to choose a relay for your car.
