We look at the eu colour coding wires. Am i right in understanding that my knackered 2 way switch can be replaced by this intermediate one i have just by ignoring one of the l1 and using.
Livolo Intermediate Rf Remote Control Wall Touch Light Switch Socket 1 Gang 2 Way Vl C301sr 62 View Wall Switch Socket Livolo Product Details From

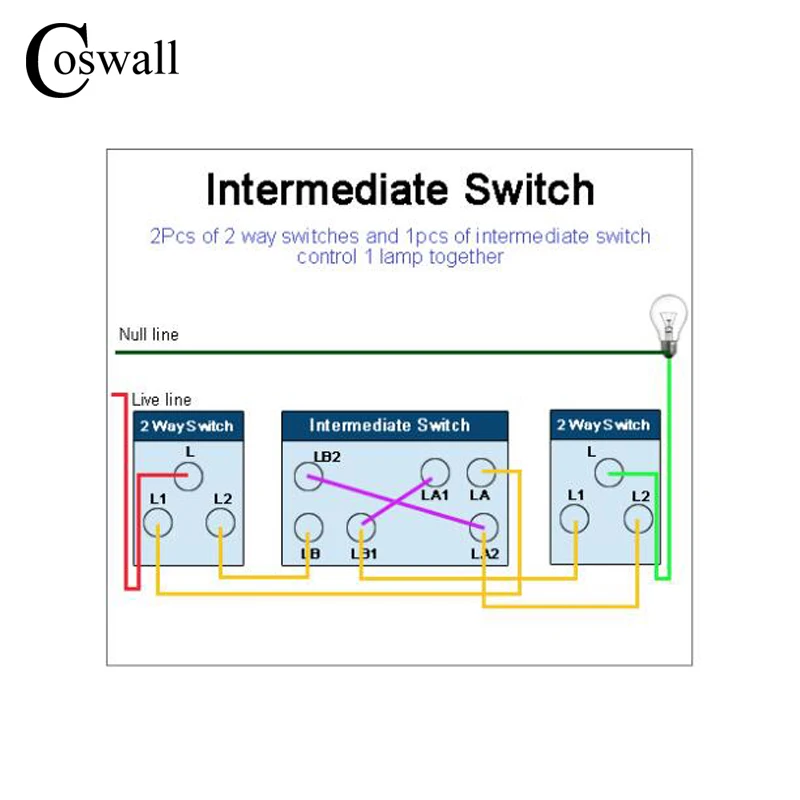

2 way intermediate light switch. Your light will more than likely be a simple domestic lightâ these lights are designed to have the means for. L1 l1 l2 l2. The diagram shows the common method of wiring an intermediate switch into a two way light switch circuit. Now that the hardest part has been completed you will have to wire up the light switches. The cable coming from. If playback doesnt begin shortly try restarting your device.
In one position the terminals are connected together in the other the. How to wire 2 way light switch in this video we explain how two way switching works to connect a light fitting which is controlled with two light switches. The two power wires which will be either brown and blue or red and black from your upper switch should connect to l1 and l2 on the intermediate switch it doesnt matter which way roundn. A one way switch has two terminals. Videos you watch may be added to the tvs. Risteard 7 jan 2019.
Intermediate light switch wiring l1 l2 l3 l4 vs. Light switches 1 way 2 way intermediate the video. Log in or sign up. It should be fitted between the first and the last switches on the circuit. Tomtomuk 6 jan 2019 in forum. An intermediate switch is used if more than two switches are required to control a two way lighting circuit.
Two way switch on your top floor as the upper switch and the one on the ground floor as the lower switch. Now it is time for the intermediate switch to. If replacing an existing switch note the location of the terminals and the colour and position of cable connections.
